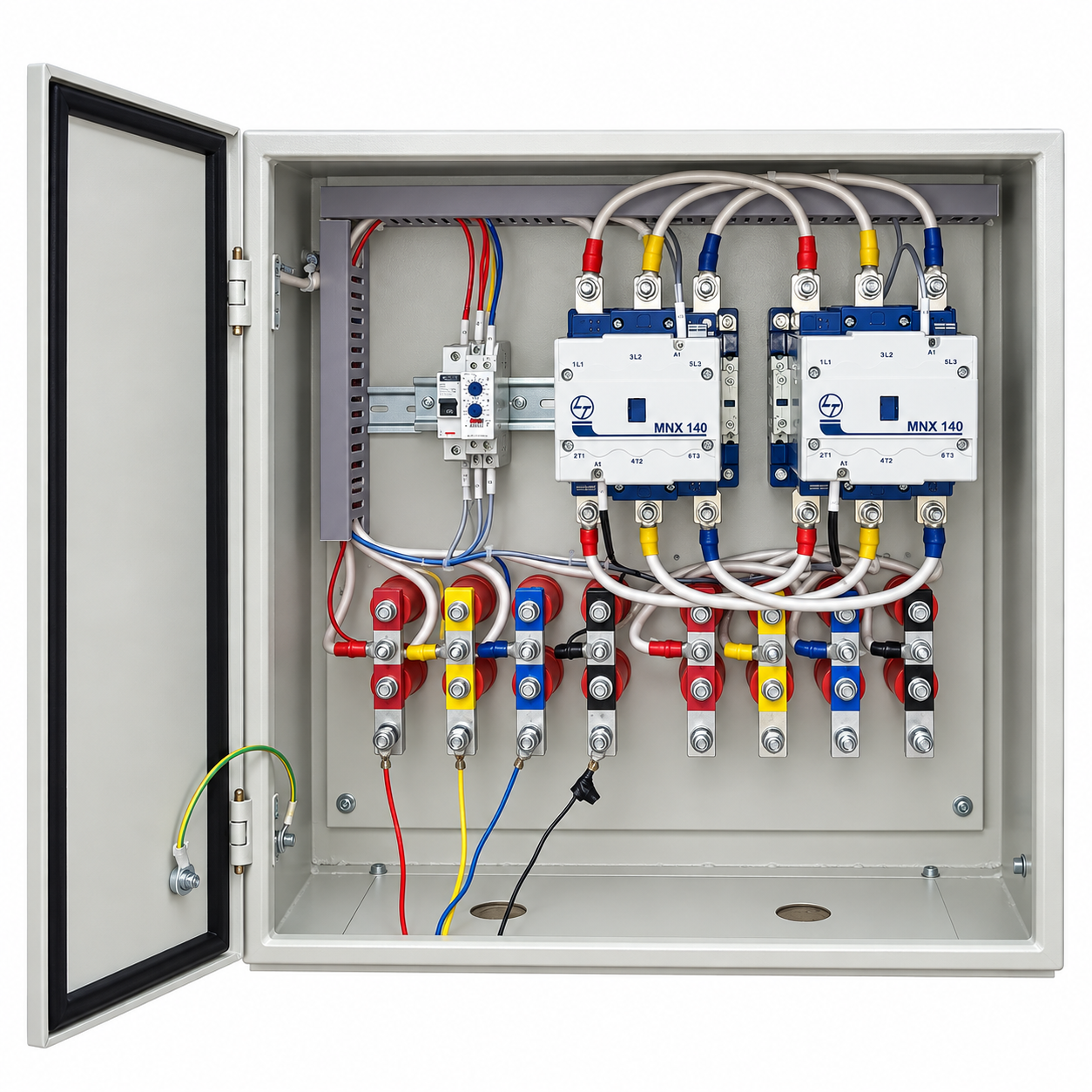

Phase Sequence Control Panel Manufacturers in Pune
Brothers Engineering is leading Phase Sequence Control Panel Manufacturers, Suppliers, Dealers, Traders, Wholesalers and Exporters in Pune. Established in 2018, we provide high-quality Phase Sequence Control Panel solutions, with 12,000+ products installed across varied applications.
We design and manufacture reliable electrical control and protection panels with a strong focus on quality, competitive pricing, and application-specific capability. Our panels are engineered using quality electrical components, robust enclosures, professional wiring, and thorough testing.
We offer standard as well as customized solutions for commercial and industrial requirements, helping customers protect motors, pumps, compressors, HVAC systems, and other three-phase equipment. Our phase sequence controller solutions support reliable operation through an integrated phase sequence control system.
What Is a Phase Sequence Control Panel and Why Is It Important?
A Phase Sequence Control Panel is an electrical protection panel designed to monitor the phase order and supply condition of three-phase power before equipment operates. It helps identify incorrect phase sequence, phase failure, phase loss, and voltage-related abnormalities, reducing the risk of motor damage and unexpected downtime. A phase sequence panel is particularly relevant for industries using motors, pumps, compressors, machinery, elevators, and automated systems where correct phase rotation is essential for safe and reliable operation.
Types of Phase Sequence Control Panel
As Phase Sequence Control Panel Manufacturers, Suppliers, Dealers, Traders, Wholesalers and Exporters in Pune, we offer a wide range of reliable and application-specific phase monitoring and protection panels designed to meet diverse industrial requirements.
- Phase Sequence Monitoring Panel Designed for continuous three-phase supply supervision, this panel identifies incorrect phase order, phase loss, and related abnormalities. It helps maintain safe operation of motors, pumps, compressors, and other industrial equipment. A phase sequence relay panel can be incorporated for dependable monitoring and control.
- Automatic Phase Sequence Control Panel Using automatic monitoring and control logic, this solution responds to detected phase conditions without requiring frequent manual intervention. Automatic phase sequence panel is suitable for applications that require dependable three-phase supply monitoring and controlled equipment operation.
- Phase Sequence Protection Panel Built to safeguard connected machinery, this panel prevents operation when the incoming phase sequence is unsuitable for the application. It provides an additional protection layer for three-phase motors and electrical equipment.
- Phase Sequence Correction Panel Developed with suitable switching arrangements, this solution automatically manages an incorrect phase order to provide the required phase rotation. It is useful for equipment where maintaining proper motor direction is essential. An automatic phase sequence corrector panel provides a practical solution for automated phase correction.
- Phase Failure Protection Panel By detecting a missing or failed phase, this protective arrangement can disconnect or control the connected load during unsafe supply conditions. It helps reduce the risk of single-phasing, motor overheating, and equipment damage. A heavy duty phase failure control panel is suitable for demanding industrial applications.
- Phase Reversal Protection Panel Through phase-rotation detection, this panel identifies reverse sequencing before connected equipment operates in the wrong direction. It is well suited for motors, pumps, compressors, elevators, and machinery requiring correct rotational movement. A custom phase reversal protection panel can be configured for specialized machinery requirements.
- Digital Phase Sequence Control Panel Featuring digital monitoring technology, this configuration provides convenient indication of phase conditions and supports accurate electrical supervision. It is suitable for modern industrial installations requiring clear and reliable three-phase monitoring. These phase sequence electrical boards can be designed with application-specific monitoring functions.
- OEM Phase Sequence Control Panel Developed around specific machine requirements, this customized solution can incorporate defined control logic, component specifications, dimensions, and protection functions. OEM motor phase protection panel is ideal for OEMs seeking repeatable panels for machine integration and production applications.
Technical Specifications of Phase Sequence Control Panel
As Phase Sequence Control Panel Suppliers, Wholesalers, Manufacturers, Dealers, Traders and Exporters in Pune, we provide panels with carefully selected electrical specifications and customizable configurations to deliver dependable performance across different three-phase applications. Our industrial phase sequence relay board configurations can be adapted to suit different operating conditions.
| Parameter | Specification |
|---|---|
| Operating Voltage | 220–480 V AC nominal; sensing range up to 194–528 V AC |
| Frequency | 50/60 Hz, ±10% |
| Phase System | 3-phase, 3-wire or 4-wire |
| Phase Sequence | Detects correct and reverse phase rotation |
| Phase Failure | Detects loss of one or more phases |
| Voltage Imbalance | Adjustable protection, typically 5–15% |
| Over/Under Voltage | Adjustable monitoring range, typically ±2–20% |
| Output Contact Rating | 5–8 A at 250 V AC |
| Power Consumption | Approximately 2–22 VA |
| Response Time | Typically below 200 ms for major fault conditions |
| Trip/Reset Delay | Adjustable from 0.1–10 seconds |
| Enclosure Protection | IP30/IP54/IP65 options available as required |
| Mounting | DIN rail or sheet-steel wall mounting |
| Operating Temperature | Approximately -20°C to +50°C |
| Customization | Voltage, protection functions, enclosure, components, and control logic can be customized |
| Quality Testing | Functionally inspected and tested before dispatch |
Our 3 phase sequence corrector panel solutions are developed with application requirements in mind. We also provide an automatic phase changing panel where the application requires controlled phase switching.
Features and Benefits of Phase Sequence Control Panel
As Phase Sequence Control Panel Dealers, Exporters, Suppliers, Wholesalers, Manufacturers and Traders in Pune, we provide feature-rich panels engineered for effective phase monitoring, equipment protection, operational reliability, and convenient maintenance.
| Key Feature | Technical Function | Primary Benefit | Application Value |
|---|---|---|---|
| Phase Sequence Monitoring | Continuously checks the incoming three-phase rotation order. | Helps prevent incorrect motor rotation and operational faults. | Suitable for motors, pumps, compressors, and industrial machinery. |
| Phase Failure Protection | Detects the loss of one or more phases in the power supply. | Helps reduce motor overheating and damage caused by single-phasing. | Supports reliable operation of three-phase equipment. |
| Phase Reversal Protection | Identifies incorrect or reversed phase rotation before equipment operation. | Protects rotating equipment from running in the wrong direction. | Ideal for pumps, elevators, compressors, and automated machinery. |
| Voltage Monitoring | Monitors abnormal overvoltage, undervoltage, and phase imbalance conditions. | Provides additional protection against unstable electrical supply. | Helps improve equipment reliability and service life. |
| Automatic Protection | Initiates protective control when a programmed phase fault is detected. | Reduces manual intervention and unexpected equipment downtime. | Suitable for continuous industrial and commercial operations. |
| Robust Panel Construction | Houses control relays, protection devices, wiring, and switching components securely. | Supports dependable performance in demanding environments. | Suitable for industrial electrical installations. |
| Customized Configuration | Allows control logic, ratings, enclosure, and protection functions to match application needs. | Provides a practical solution without unnecessary features or cost. | Suitable for OEM, machinery, pump, HVAC, and automation applications. |
| Easy Maintenance | Organized components and wiring simplify inspection and servicing. | Helps reduce maintenance time and improves service accessibility. | Beneficial for production plants and critical equipment. |
A custom phase loss protection panel may be suitable where specific phase-loss protection requirements apply. For purchasing decisions, the 3 phase sequence corrector panel price should be evaluated alongside specifications, protection functions, and customization requirements. An automatic phase selector panel can also be considered for applications requiring automated phase selection. The Phase Sequence Corrector configuration should be selected according to the connected equipment and required phase-rotation control.
Applications of Phase Sequence Control Panel
As Phase Sequence Control Panel Traders, Exporters, Suppliers, Wholesalers, Dealers and Manufacturers in Pune, we provide versatile solutions suitable for motors, pumps, machinery, automation systems, and other industrial equipment requiring reliable three-phase protection.
- Industrial Motor Protection: A phase sequence protection panel helps monitor phase rotation and failure conditions to protect three-phase motors used in manufacturing plants and industrial machinery. The industrial phase sequence relay switchgear can support reliable motor protection.
- Water Pump Systems: A water pump phase protection control panel helps prevent pump motors from operating during phase loss or incorrect phase sequence conditions.
- CNC Machines: A CNC machine phase sequence board supports correct phase rotation and supply monitoring for precision machinery requiring reliable three-phase power.
- Elevator Systems: An elevator phase sequence control panel helps maintain correct motor rotation and provides protection against phase reversal and phase failure.
- HVAC Equipment: A phase sequence monitoring panel is suitable for air-conditioning, ventilation, and refrigeration systems that depend on stable three-phase motor operation.
- Compressors: A phase failure protection panel helps safeguard compressor motors by detecting missing phases and abnormal supply conditions before serious equipment damage occurs.
- Industrial Automation: A three phase sequence panel can be integrated into automated machinery and production systems to support dependable operation and reduce electrical-related downtime.
- OEM Machinery: An OEM phase sequence control panel provides customized phase monitoring and protection for machine manufacturers requiring application-specific electrical control solutions.
Why Choose Us?
- Proven Engineering Expertise: We combine practical electrical engineering knowledge with proven panel manufacturing capabilities to deliver dependable phase protection solutions for diverse industrial applications.
- Quality with Competitive Pricing: We use carefully selected components, professional fabrication, and systematic testing to provide reliable Phase Sequence Control Panel solutions at competitive and value-driven prices.
- Customized Solutions: We understand individual application requirements and develop customized panels with suitable protection functions, control logic, enclosure designs, and electrical configurations for OEM and industrial needs.
Choose Brothers Engineering is well-known Phase Sequence Control Panel Manufacturers, Suppliers, Dealers, Traders, Wholesalers and Exporters in Pune. We deliver reliable phase monitoring and protection solutions designed around real application requirements. With quality manufacturing, customization capability, competitive pricing, and 12,000+ installed products, we help customers achieve safer, more dependable, and efficient three-phase equipment operation. Reach out to us for additional information.
FAQ’s
A Phase Sequence Control Panel monitors three-phase power for correct phase rotation, phase loss, and related electrical faults. It helps protect motors and equipment from unsafe operating conditions.
The panel continuously monitors incoming phases and detects incorrect sequence, phase failure, or voltage abnormalities. When a fault occurs, it initiates the required protective or correction action.
Common components include a phase monitoring relay, contactor, MCB/MCCB, terminals, control wiring, indicators, and protective devices. Component selection depends on the load and application requirements.
It is used for industrial motors, pumps, compressors, CNC machines, elevators, HVAC systems, and automated machinery. It is suitable for applications where reliable three-phase operation is essential.
Consider the supply voltage, load rating, phase configuration, protection functions, enclosure rating, and control requirements. Customized configurations are ideal for specialized industrial and OEM applications.
